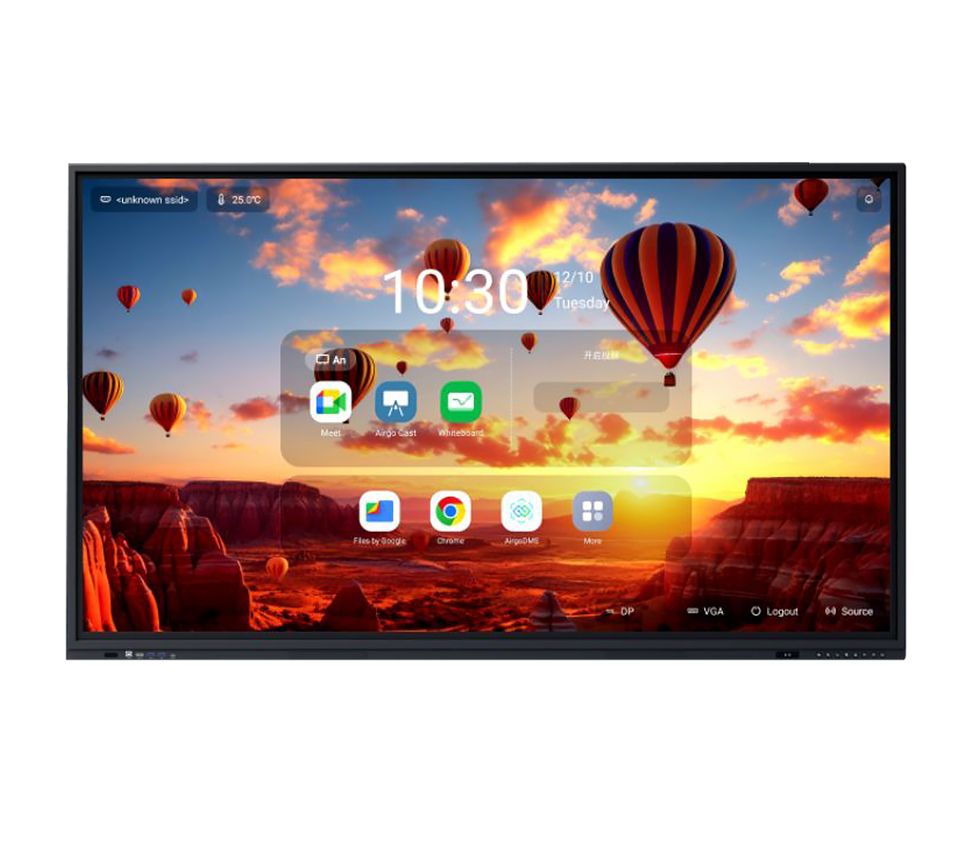

YUGENTEC Interactive TV 65'' – Touch Screen Display for Education, Business & Meetings

KEY FEATURES

• TOUCH PENETRATION TECHNOLOGY

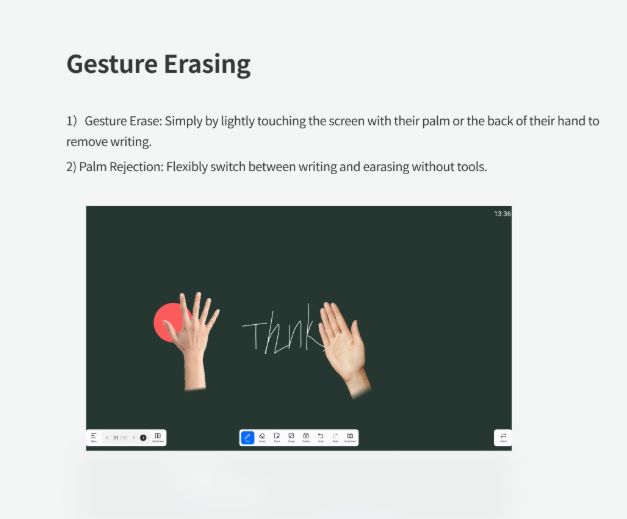

• PALM REJECTION
• ANNOTATION

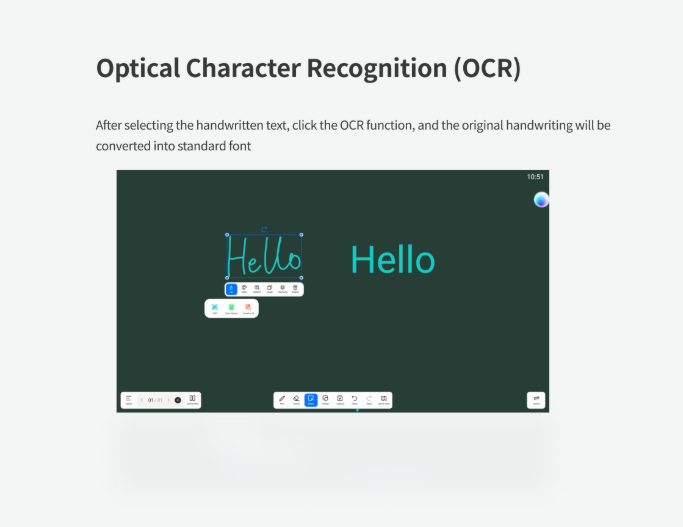

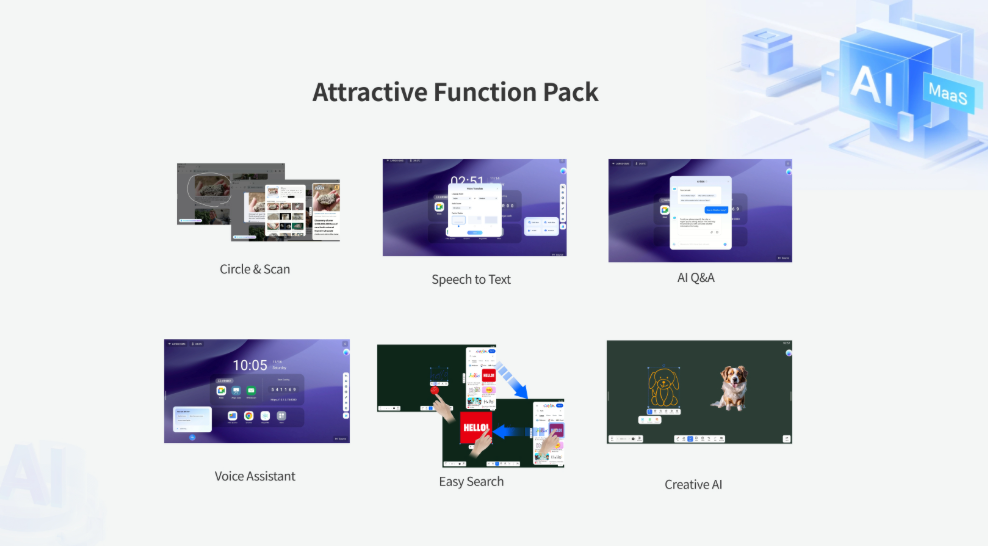

• AI RECOGNITION AND SEARCH
• HANDWRITING INPUT AND SEARCH
• MAGIC PEN
• HANDWRITING TRAGECTORY SECONDARY RECOGNITION AND SEARCH

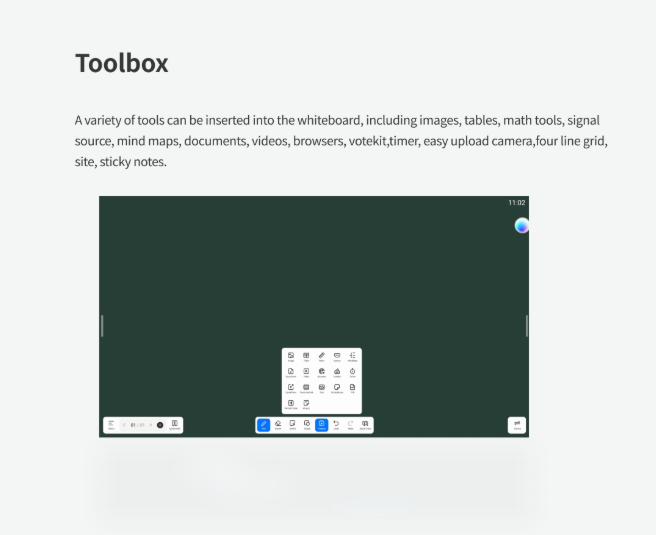

• NEW WHITEBOARD TOOLS

Boost collaboration, engagement, and productivity with the YUGENTEC 65" Interactive TV. Designed for classrooms, conference rooms, training facilities, and collaborative workspaces, this 4K UHD interactive display combines advanced touch technology, powerful Android performance, and extensive connectivity to create a seamless interactive experience for education and business.

Display

The YUGENTEC 65" Interactive TV features an active display area of 1429 × 806 mm with a 16:9 aspect ratio and Zero Gap bonding, delivering enhanced image quality and highly accurate touch response. Equipped with Direct LED (D-LED) backlighting, the display offers stunning 4K UHD resolution (3840 × 2160) at 60Hz for crisp, vibrant visuals.

It provides 400 cd/m² brightness, a 4000:1 contrast ratio, a 178° viewing angle, 72% NTSC color gamut, and 10.7 billion colors, ensuring exceptional image clarity and color accuracy from virtually any angle.

For added durability, the screen is protected by 4 mm anti-glare tempered glass with 9H pencil hardness and 7H Mohs hardness, making it ideal for everyday interactive use.

Touch Performance

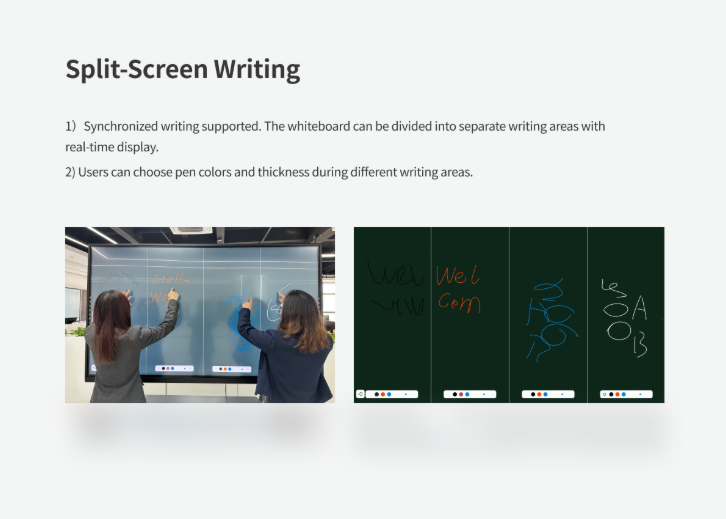

The display supports 40-point multi-touch and 20-point simultaneous writing, allowing multiple users to collaborate at the same time. With ±1 mm touch accuracy, users can write or navigate smoothly using fingers, stylus pens, or other non-transparent objects.

The touch system is compatible with Windows XP, Windows 7, Windows 8, Windows 10, Windows 11, Linux, ChromeOS, macOS, and Android.

Android System

Powered by the Rockchip RK3576 chipset, the display features an Octa-Core processor (4× Cortex-A72 + 4× Cortex-A53) with a Mali-G52 MC3 GPU, delivering responsive performance for presentations, annotation, multitasking, and multimedia applications.

The system includes 16GB RAM, 256GB internal storage, runs on Android 14, supports Google EDLA, and is upgradeable for future software updates.

Audio

The built-in 2.1-channel sound system includes:

• 2 × 20W speakers
• 1 × 20W subwoofer

This delivers clear speech and rich audio for meetings, lectures, presentations, and video conferencing.

Front Connectivity

Front-facing ports include:

• 1 × USB Touch 2.0
• 1 × HDMI 2.0 Input
• 2 × USB 3.0
• 1 × USB Type-C with up to 65W Power Delivery (15W when an OPS module is installed)

Rear Connectivity

Comprehensive rear I/O includes:

• 1 × RS-232
• 1 × Microphone Input
• 1 × SPDIF Output
• 1 × Gigabit LAN Input
• 1 × Gigabit LAN Output
• 1 × USB Touch 3.0
• 2 × HDMI 2.0 Inputs
• 1 × DisplayPort Input
• 1 × HDMI Output
• 3 × USB Type-A
• 1 × USB Type-C
• Built-in TF Card Slot
• 1 × VGA Audio Input
• 1 × Line Out

Wireless Connectivity

Built-in wireless connectivity includes:

• Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax)
• Bluetooth 5.4

Physical Controls

Convenient front panel buttons include:

• Eye Care
• Menu
• Return
• Source
• Home
• Volume Up/Down
• Power

Included Accessories

Each YUGENTEC Interactive TV comes with:

• 2 × Stylus Pens
• 1 × Remote Control
• 1 × Wall Mount Kit
• 1 × 3m HDMI Cable
• 1 × 3m USB Touch Cable
• 1 × 3m Power Cable
• User Manual
• Product Certification
• QC Pass Certificate

Power

• Maximum Power Consumption: 330W
• Current Rating: 3.5A
• Operating Voltage: 100–240V AC, 50/60Hz
• Standby Power Consumption: ≤0.5W

Dimensions & Weight

• Panel Dimensions: 1489 × 913 × 51 mm
• With Wall Mount: 1489 × 913 × 114 mm
• Package Dimensions: 1626 × 210 × 1011 mm
• Net Weight: 43 kg
• Gross Weight: 48 kg
