YUGENTEC Interactive TV 75'' – Touch Screen Display for Education, Business & Meetings

KEY FEATURES

• TOUCH PENETRATION TECHNOLOGY

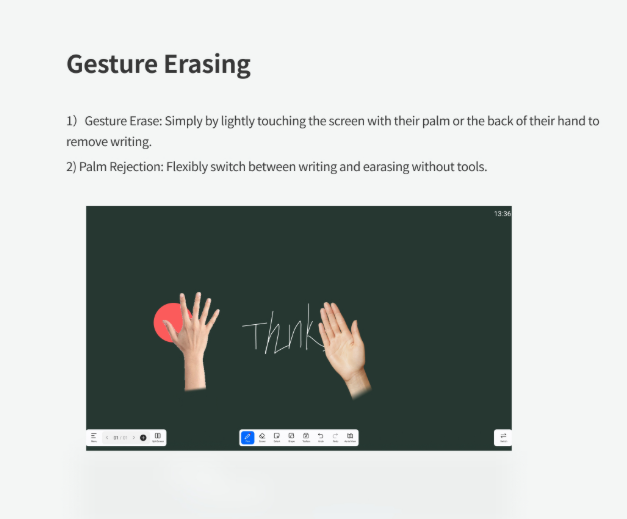

• PALM REJECTION
• ANNOTATION
• AI RECOGNITION AND SEARCH
• HANDWRITING INPUT AND SEARCH
• MAGIC PEN
• HANDWRITING TRAGECTORY SECONDARY RECOGNITION AND SEARCH
• NEW WHITEBOARD TOOLS


Enhance collaboration, presentations, and interactive learning with the YUGENTEC 75" Interactive TV. Designed for classrooms, meeting rooms, training centers, and corporate environments, this 4K UHD interactive display combines responsive multi-touch technology, powerful Android performance, and versatile connectivity to deliver an engaging and productive user experience.

Display

The YUGENTEC 75" Interactive TV features an active display area of 1651 × 928 mm with a 16:9 aspect ratio and Zero Gap bonding for improved image clarity and touch precision. Powered by Direct LED (D-LED) backlighting, it delivers stunning 4K UHD resolution (3840 × 2160) at 60Hz for crisp, detailed visuals.

The display offers 400 cd/m² brightness, a 4000:1 contrast ratio, a 178° wide viewing angle, 72% NTSC color gamut, and 10.7 billion colors, ensuring vibrant and accurate image reproduction from virtually any viewing position.

For long-lasting durability, the screen is protected by 4 mm anti-glare tempered glass with 9H pencil hardness and 7H Mohs hardness, providing excellent resistance against scratches and everyday wear.

Touch Performance

Designed for seamless collaboration, the display supports 40-point multi-touch and 20-point simultaneous writing with an impressive ±1 mm touch accuracy. Users can interact using fingers, stylus pens, or other non-transparent objects, making it ideal for presentations, brainstorming sessions, and classroom instruction.

The touch system is compatible with Windows XP, Windows 7, Windows 8, Windows 10, Windows 11, Linux, ChromeOS, macOS, and Android.

Android System

At its core is the powerful Rockchip RK3576 processor featuring an Octa-Core CPU (4× Cortex-A72 + 4× Cortex-A53) and Mali-G52 MC3 GPU for smooth multitasking and responsive performance.

The system includes 16GB RAM and 256GB internal storage, runs on Android 14, supports Google EDLA, and is upgradeable for future software enhancements.

Audio

The integrated 2.1-channel sound system consists of:

• 2 × 20W speakers
• 1 × 20W subwoofer

This delivers rich, clear audio for presentations, meetings, multimedia playback, and video conferencing.

Front Connectivity

Convenient front-facing ports include:

• 1 × USB Touch 2.0
• 1 × HDMI 2.0 Input
• 2 × USB 3.0
• 1 × USB Type-C with up to 65W Power Delivery (15W when an OPS module is installed)

Rear Connectivity

The rear panel provides comprehensive connectivity options, including:

• 1 × RS-232
• 1 × Microphone Input
• 1 × SPDIF Output
• 1 × Gigabit LAN Input
• 1 × Gigabit LAN Output
• 1 × USB Touch 3.0
• 2 × HDMI 2.0 Inputs
• 1 × DisplayPort Input
• 1 × HDMI Output
• 3 × USB Type-A
• 1 × USB Type-C
• Built-in TF Card Slot
• 1 × VGA Audio Input
• 1 × Line Out

Wireless Connectivity

Built-in wireless features include:

• Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax)
• Bluetooth 5.4

Physical Controls

Front panel buttons include:

• Eye Care
• Menu
• Return
• Source
• Home
• Volume Up/Down
• Power

Included Accessories

The package comes complete with:

• 2 × Stylus Pens
• 1 × Remote Control
• 1 × Wall Mount Kit
• 1 × 3m HDMI Cable
• 1 × 3m USB Touch Cable
• 1 × 3m Power Cable
• User Manual
• Product Certification
• QC Pass Certificate

Power

• Maximum Power Consumption: 360W
• Current Rating: 4A
• Operating Voltage: 100–240V AC, 50/60Hz
• Standby Power Consumption: ≤0.5W

Dimensions & Weight

• Panel Dimensions: 1711 × 1036 × 51 mm
• With Wall Mount: 1711 × 1036 × 118 mm
• Package Dimensions: 1848 × 210 × 1134 mm
• Net Weight: 53 kg
• Gross Weight: 63 kg
