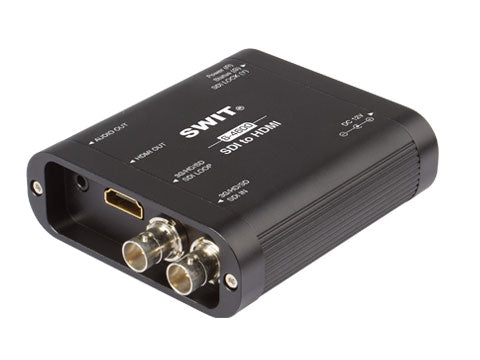

Swit S-4600 SDI to HDMI Converter
₱10,500.00
Tax included.
The S-4600 is a portable 3GSDI to HDMI converter. It converts the 3GSDI with its embedded audio to HDMI output, and supports 3GSDI loop through output and SDI embedded audio via 3.5mm earphone output.
The S-4600 is heavy duty housing design, protecting the BNC connectors well, and supplies various screw threads at the bottom, for convenient installing, and future accessories (battery mount, etc.)
Key Features:
- Portable 3G/HD/SD-SDI to HDMI Converter
- 1x 3GSDI input, 1x HDMI output and 1x 3GSDI loop through output
- SDI audio output via 3.5mm socket
- Embed SDI audio to HDMI output
- Power/input/output status indicator
- Heavy duty aluminium housing
- Bottom screw threads for installing
| Input | ||
| BNC x 1 | 3G/HD/SD-SDI input | |
| Output | ||
| BNC x 1 | 3G/HD/SD-SDI loop output | |
| HDMI x 1 | Converted HDMI output | |
| 3.5mm x 1 | SDI audio output | |
| Video Format | ||
| SDI | SMPTE-425M | 1080p (60 / 59.94 / 50) |
| SMPTE-274M | 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
| SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| SMPTE-296M | 720p (60 / 59.94 / 50) | |
| SMPTE-125M | 480i (59.94) | |
| ITU-R BT.656 | 576i (50) | |
| HDMI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | ||
| 720p (60 / 59.94 / 50) | ||
| 480i / 576i | ||
| Audio | 48KHz Sync | |
| General | ||
| Power | ≤3W | |
| Working Voltage | DC 6-18V | |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% | |
| Dimensions | 98x84x29 mm | |
