Lumantek ez-Pro VS4 4x1 Multiview Switcher for 3G-SDI and HDMI


  • 4-Input, 1-Channel HD Video
  • 3G/HD/SD-SDI Inputs & Outputs
  • Adjustable PiP, 2 x Logos, Luma Keyer

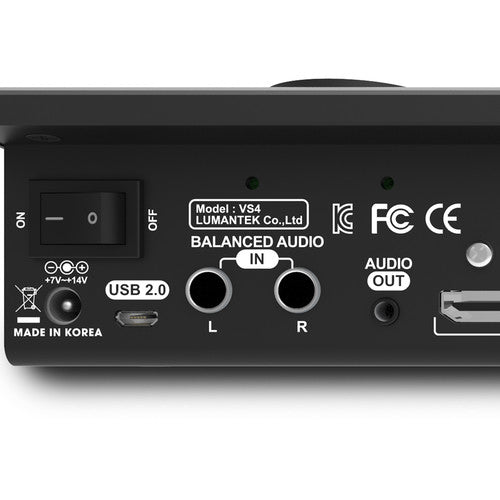

  • Embedded I/O & External RCA Audio Input
  • Multiview Output through HDMI
  • Supports Level A & Level B 3G-SDI
  • Wipe, Mix, Cut & Additional Transitions
  • Embedded Audio Volume Control

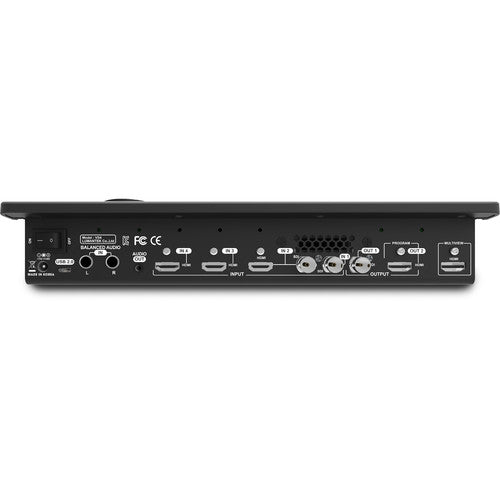

  • Video Input:
         1 x SDI/HDMI (selective)
         1 x SDI
         2 x HDMI

    Video Output:
         1 x HDMI
         1 x SDI

         1 x HDMI

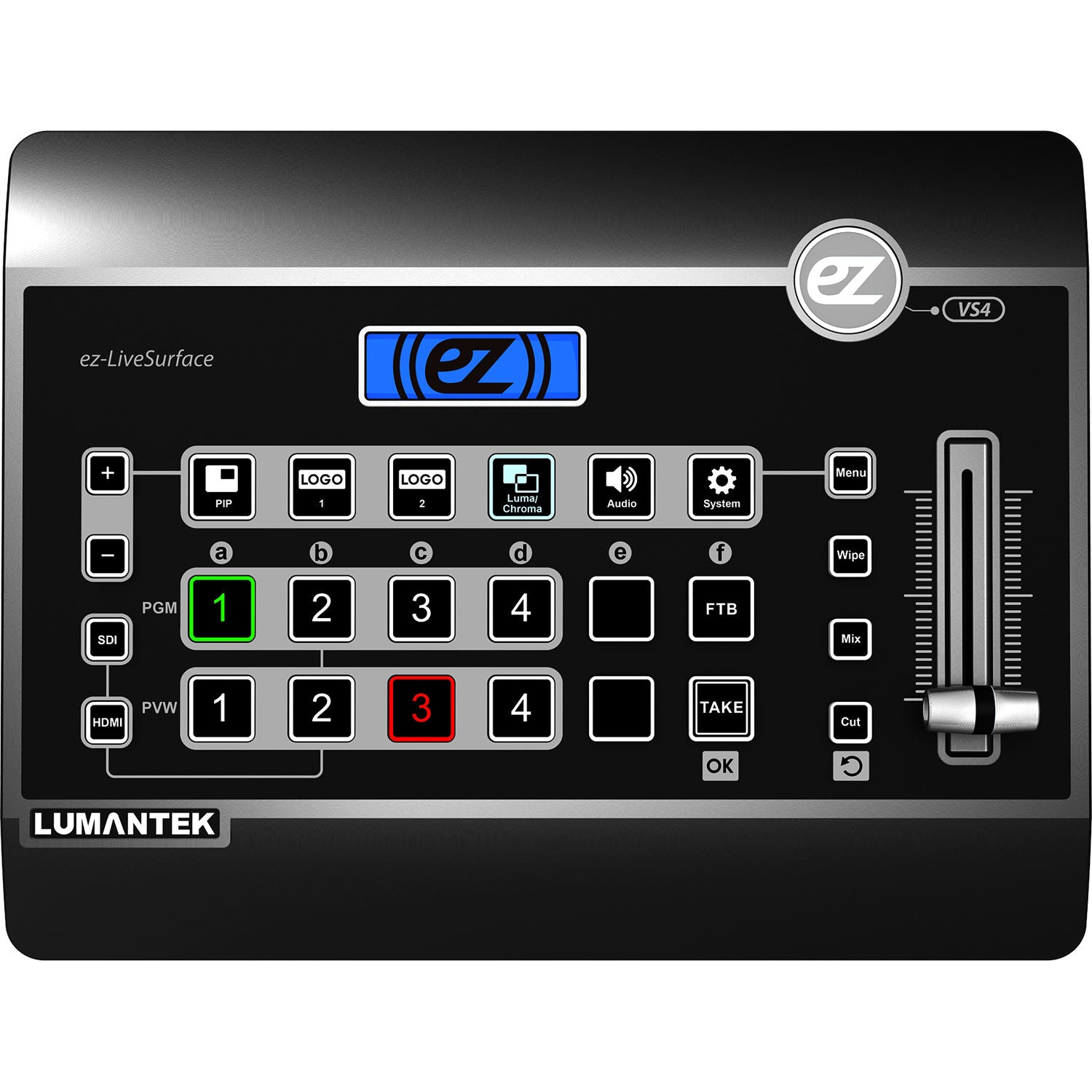

The flexible ez-Pro VS4 4x1 Multiview Switcher from Lumantek is a standalone console switcher designed for corporate, educational, event, and house-of-worship applications. Integrated scaling enables you to mix and match up to four SD, HD, 3G-SDI, and HDMI signals. Program is output via HDMI or SDI, and a multiview display is available via HDMI. Features of the ez-Pro VS4 include an adjustable PiP (picture-in-picture) function, chroma/luma keying, embedded-audio volume control, and dual-logo insertion. Use the console buttons and T-bar to switch, cut, mix, wipe, and otherwise transition between sources.
