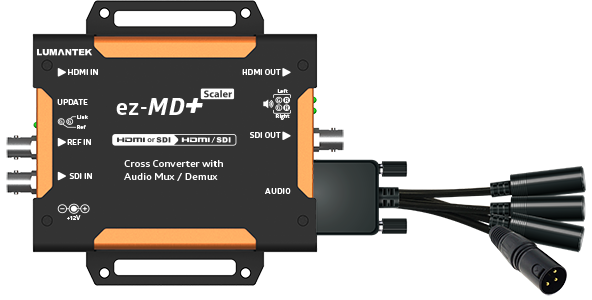

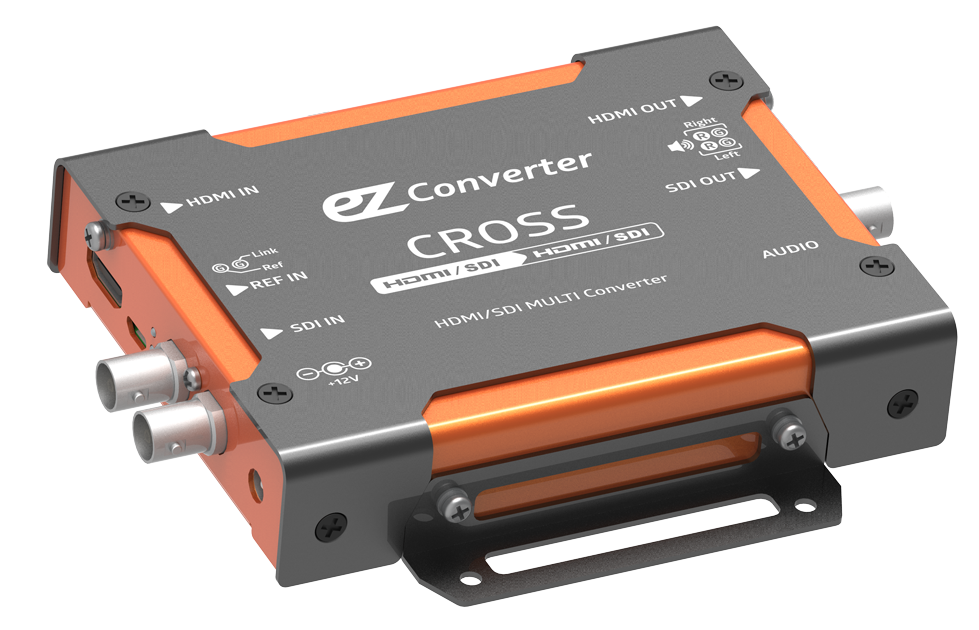

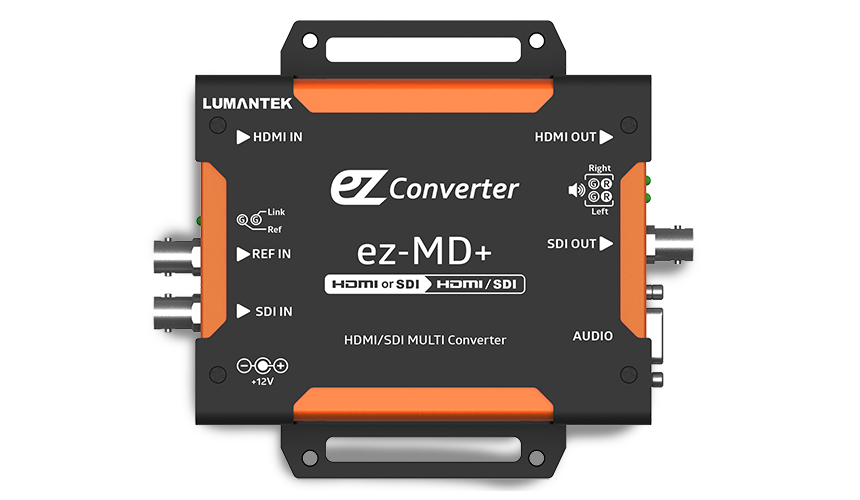

Lumantek ez-MD+HDMI/SDI Converter with Audio Mux/Demux


Product Highlights

  • Converts HDMI to SDI & SDI to HDMI
  • Upscales & Downscales Signal
  • Output Resolution up to 1080p60
  • Screen Ratio Control
  • Audio Embedding & De-Embedding
  • Audio Delay Control
  • Frame Synchronization

Lumantek EZ-MD+ Overview

The compact HDMI/SDI Cross Converter from Lumantek converts HDMI to SDI signals or SDI to HDMI signals. The converter can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60 and lets you choose between a 16:9 or 4:3 video displaying ratio. A 9-pin serial port allows embedding and de-embedding of audio with the included external 9-pin to XLR breakout cable. A 10-step rotary switch controls the audio delay of the video source at 50ms steps.

Frame Synchronization
There is a Free Running, Input Lock, and Genlock mode to synchronize your video signal. The Genlock system ensures proper synchronizing of the signals when aligning the source with an external signal.
