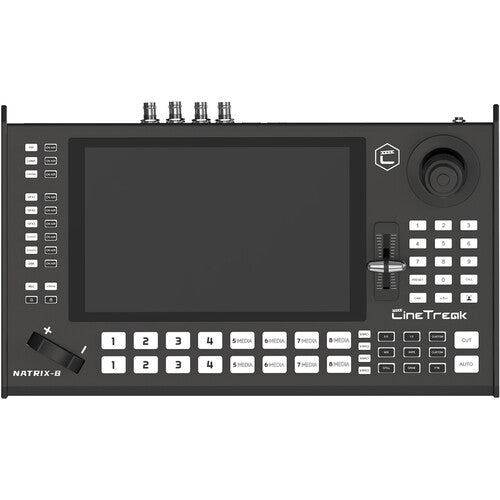

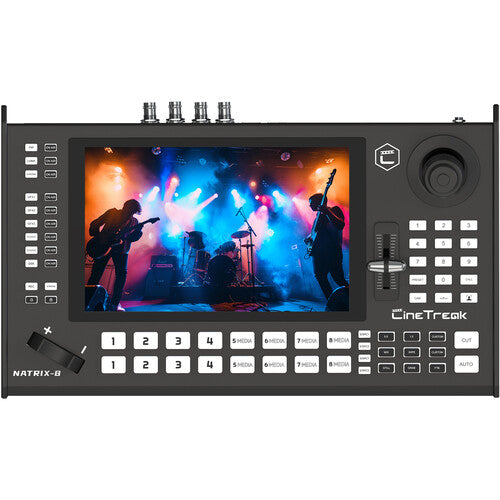

CineTreak Natrix 8 8-Channel Video Switcher with ISO Recording & Live Streaming
₱0.00
Tax included.
Message us today for pricing, availability, and inquiries!
VIBER: 09222523716
EMAIL:
sales@shuttermaster.com.ph
sales2.aperturecorp@gmail.com
sales3.aperturecorp@gmail.com
Key Features
- Streaming Switcher with 10" Touchscreen
- 4 HDMI, 4 SDI, and 4 USB Media Inputs
- 3 Configurable HDMI AUX Outputs
- 2 XLR Inputs with 48V Phantom Power
- Dual Gigabit Ethernet with PoE Support
- Upstream/Downstream Keying
- Instant Replay and Slow-Motion Playback
- Tally Light and Real-Time Monitoring
- IP Control via PC, Tablet, or Smartphone
- CNC-Machined Panel

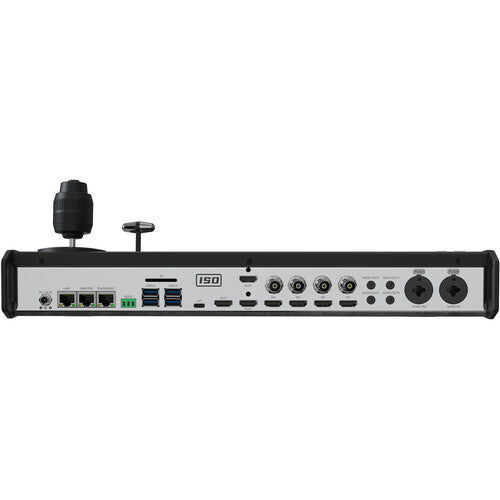

The Natrix 8-Channel ISO Recording and Live Streaming Video Switcher from CineTreak is a versatile streaming switcher with a CNC-machined panel and an integrated 10" touchscreen. The unit is equipped with four HDMI, four SDI, and four USB-A media inputs, as well as three configurable HDMI AUX outputs, two XLR audio inputs with 48V phantom power, and two RJ45 Gigabit Ethernet ports, with one port offering PoE support. It boasts a tally light and real-time monitoring, with instant replay and slow-motion playback among its many technical attributes.
True Broadcast-Grade ControlIts integrated PTZ control panel enables direct operation of up to 255 PTZ cameras, enhanced with AI-powered subject tracking for automatic on-air talent following. It supports full eight-channel isolated control, allowing users to independently manage each input and generate separate ISO recordings, delivering maximum flexibility for post-production and multi-camera broadcast workflows.
Flexible Connectivity for Broad Compatibility
Equipped with four independent USB-A ports, allowing simultaneous connection of up to four USB webcam sources, including devices such as DJI Osmo Pocket series cameras, action cameras, and other UVC-compatible web cameras. In addition, it features a PoE-enabled Gigabit LAN port for powering the switcher via network, a secondary Gigabit LAN port for IP video, streaming, and remote control, and an RS-485/RS-422 interface for reliable PTZ camera control and broadcast device integration.
Delivering Dynamic Live Broadcasts
A fully upgraded graphics system features enhanced lower-thirds graphics for presenter identification and title overlays, as well as dynamic ticker support for real-time scrolling information such as news, announcements, or event data. Combined with live captioning and user-customizable scoreboards, these tools significantly expand on-air storytelling capabilities, allowing producers to deliver more informative, engaging, and visually dynamic live broadcasts.
Dazzling Transitions, Animated Transitions, and 3D Motion EffectsThe switcher features dazzling transition effects and introduces a new generation of animated transitions and 3D motion effects for more dynamic scene changes. With dozens of built-in transition styles, it delivers visually engaging, broadcast-quality production value while maintaining exceptional cost-performance for professional live streaming workflows.
SuperSource (S/SRC) System TechnologyThe SuperSource (S/SRC) system technology allows users to create up to four fully customizable windows with flexible control over layout, positioning, and scaling to build complex multilayer compositions with ease.
Seamless Audio-to-Video SynchronizationA built-in professional audio mixer with AFV (Audio Follows Video) provides seamless audio-to-video synchronization during live switching. The rear panel integrates two balanced XLR microphone inputs, both supporting 48V phantom power for condenser microphones, along with dual 3.5mm line inputs and dual 3.5mm line outputs for additional external audio sources and monitoring.
Comprehensive Keying CapabilitiesThe switcher supports comprehensive keying capabilities including PiP (Picture-in-Picture), Luma Key, Chroma Key, and Downstream Key (DSK), enabling professional-grade layering of video sources, backgrounds, and graphic overlays for dynamic broadcast compositions.
Fully Self-Contained Production PlatformThe newly integrated built-in browser engine transforms the switcher into a fully self-contained production platform. Once connected to a network, operators can not only control the system remotely via PC or smartphone, but also open web pages directly on the switcher and display online content in real time. Users can import and control live PPT presentations through the touchscreen interface, allowing on-air graphics and presentation materials to be managed without an external computer.
