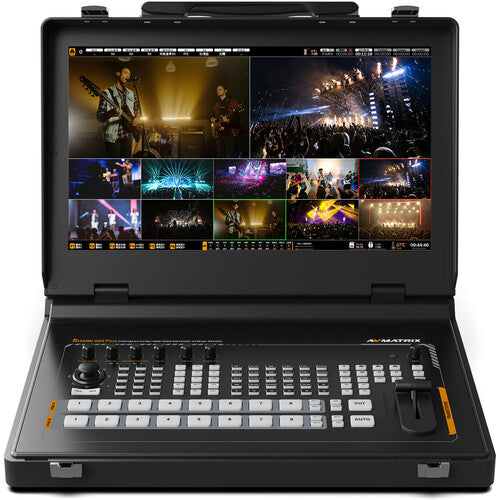

AVMATRIX SHARK S8X PLUS 8-Channel SDI/HDMI Portable Video Switcher with 17.3"" Display

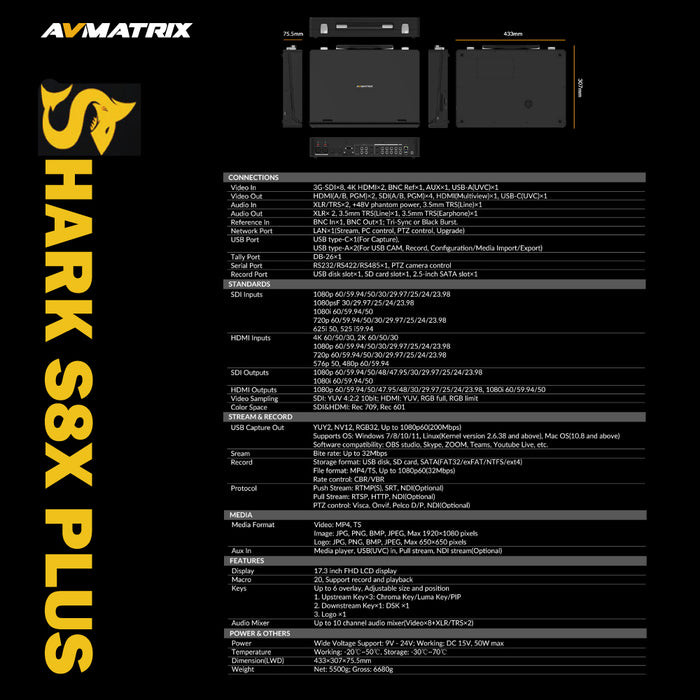

Key Features:

• 17.3-inch FHD IPS display

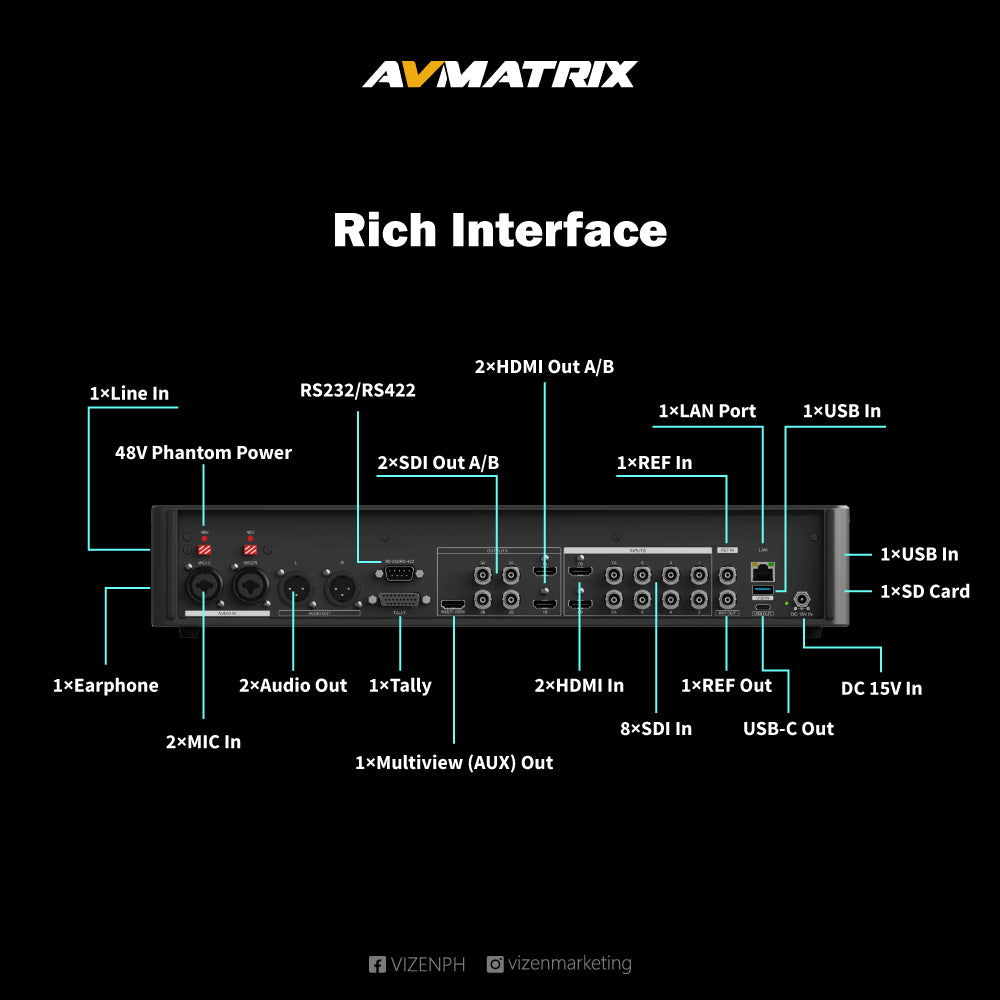

• Inputs: 6×3G-SDI and 2×SDI/4K HDMI, 1×BNC REF, 1×AUX (internal interface)
• Multi-view source routing function, supporting the definition of any input signal to any specified view
• AUX input: Video playback/UVC CAM/network pull stream/NDI
• Outputs: 2×HDMI(A/B) PGM (configurable), 4×SDI(A/B) PGM (configurable), 1×HDMI MV (source configurable), 1×REF output
• Streaming: RTMP(S)/SRT/RTSP/NDI(Optional)
• Recording and playback: USB flash drive/SD card/2.5-inch SATA
• USBC port for UVC lossless capture
• Chroma key, luma key, custom position and size PIP×3, POP, DSK, LOGO overlay
• Transition: T-bar/Auto/Cut
• Professional XLR audio input and output, supporting 48V phantom power
• Audio : 8×input video embedded audio & 2×XLR/TRS balanced & 3.5mm stereo input; 3.5mm stereo & XLR balanced output

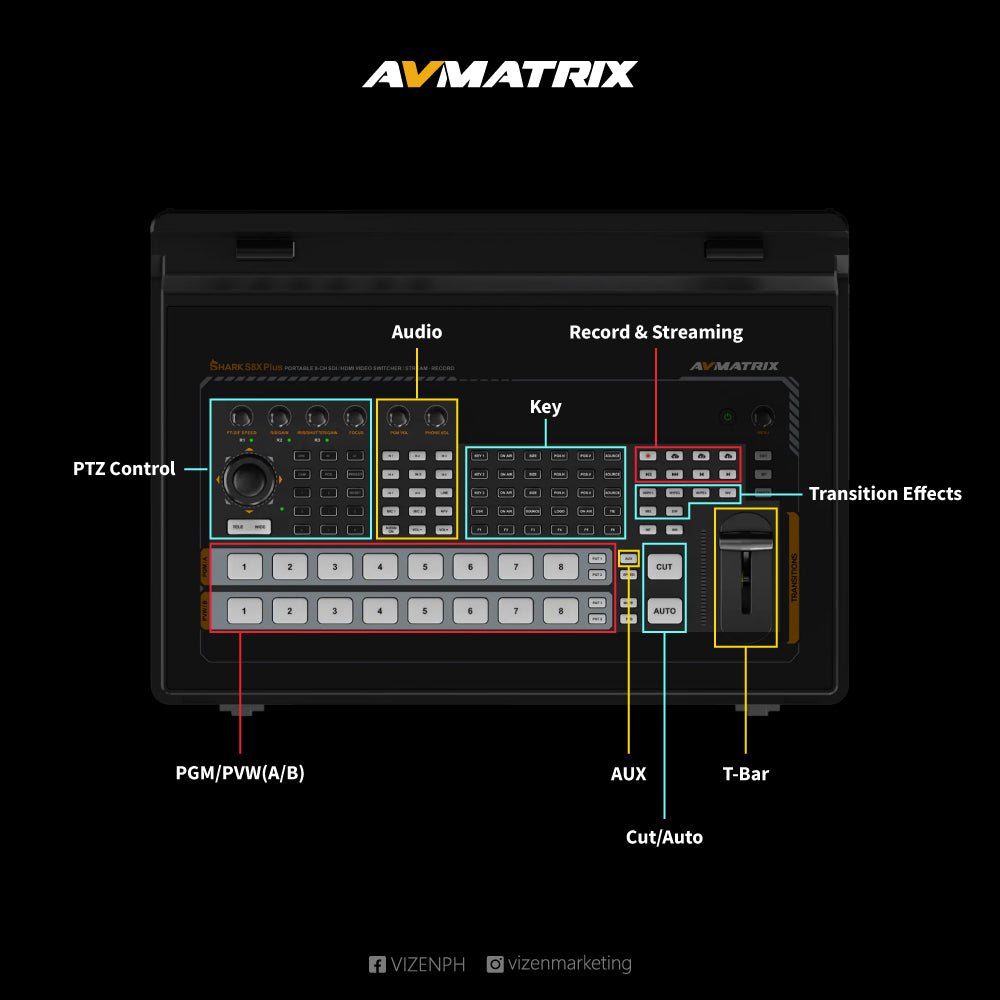

• 8-channel PTZ control, supporting PTZ speed setting, preset position setting and calling, automatic/manual white balance, automatic/manual color and automatic/manual focus control
• Macro script function, supporting macro recording, playback and user editing of macro scripts
• Tally GPIO port
