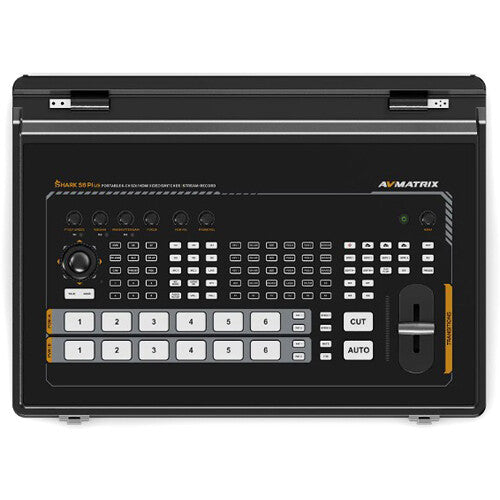

AVMATRIX SHARK S6 PLUS 6-Channel SDI/HDMI Portable Video Switcher with 17.3" Display
₱76,790.00
Tax included.
Key Features
- Video Switcher for Streaming & Recording
- 17.3" FHD IPS Multiview Display
- Four SDI & Two 4K HDMI Inputs
- Four SDI, Two 4K HDMI, USB-C Outputs
- USB, SD & SATA Recording Support
- RTMP, SRT & RTSP Streaming Compatibility
- Control up to 6 PTZ Cameras via IP
- Chroma-Key, Luma Key, PiP & Logo Overlay
- XLR Mic Audio I/O with 48V Phantom Power
- VISCA, ONVIF& Pelco P/D PTZ Control

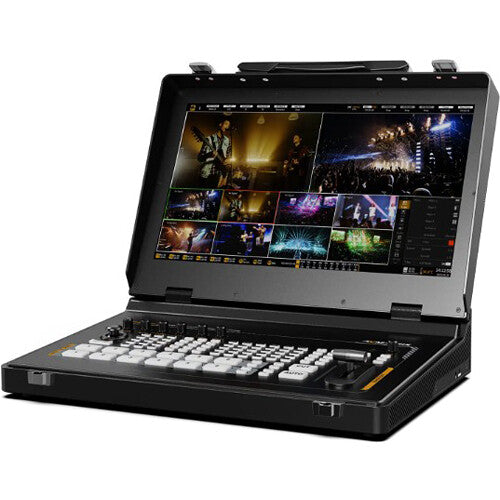

Pairing functionality with portability, the SHARK S6 PLUS 6-Channel SDI/HDMI Portable Video Switcher with 17.3" Display from AVMATRIX is a powerful 8-channel video switcher designed for professionals who need real-time control in live production environments. Featuring four 3G-SDI and two 4K HDMI inputs, it accommodates a wide range of broadcast and camera sources, while four 3G-SDI, one HDMI multiview, two HDMI PGM, and USB-C webcam/streaming outputs provide flexible signal routing and convenient monitoring on the built-in 17.3" FHD IPS display.
Video Streaming and Recording- Four 3G-SDI and two 4K HDMI input ports

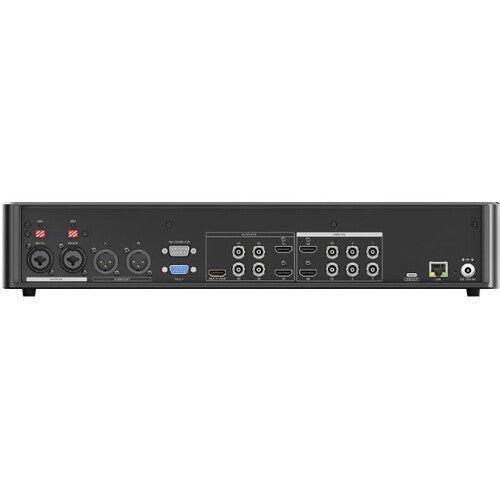

- Four SDI, one HDMI multiview, and two HDMI PGM output ports
- RTMP, SRT, and RTSP streaming support
- USB and SD recording options
- USB-C as webcam input and streaming via Windows, Linux, and macOS
Advanced Functionality- Up to six key layers with adjustable size and positioning
- Chroma-key, Luma key, and logo overlay effects
- Customizable PiP windows
- T-bar, auto, and cut transition modes
- Audio mixing between embedded, XLR, and 3.5mm line inputs
Compatibility- PTZ camera control via VISCA, ONVIF, Pelco P/D
- Tally and RS-422/RS-232 control output ports
- 48V phantom power via XLR-1/4" combo inputs for condenser mics
- Headphone and balanced audio output
