AVMATRIX SD1191 1x9 3G-SDI Distribution Amplifier
₱9,603.00
Tax included.
Key Features
- Auto-Detects up to 1080p60 SDI Input
- 9 x Buffered and Reclocked Outputs
- 3G-SDI Cable Lengths up to 394'
- RGB 4:4:4 & YUV 4:2:2/4:4:4 10-/12-Bit
- Ancillary Data Passed to the Outputs
- DVB-ASI Compatibility
- Locking Power Supply

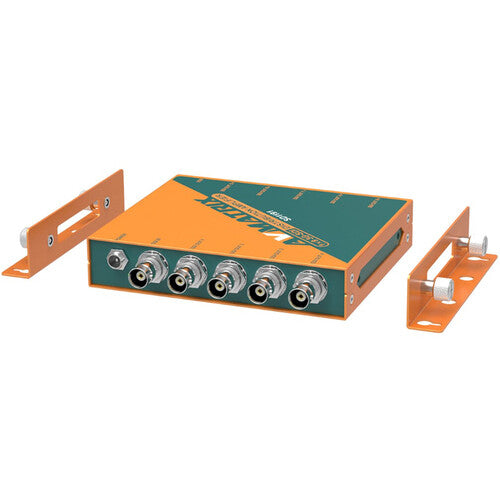

- Mounting Ears Included

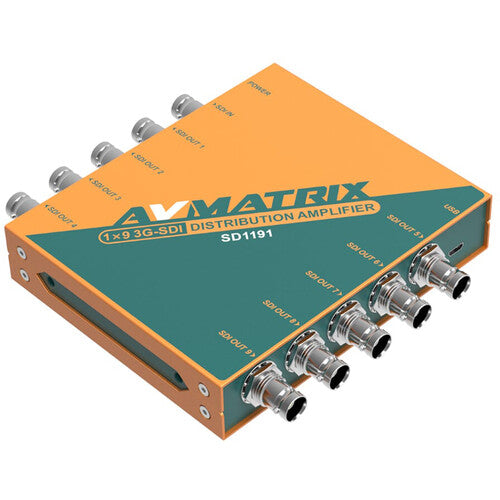

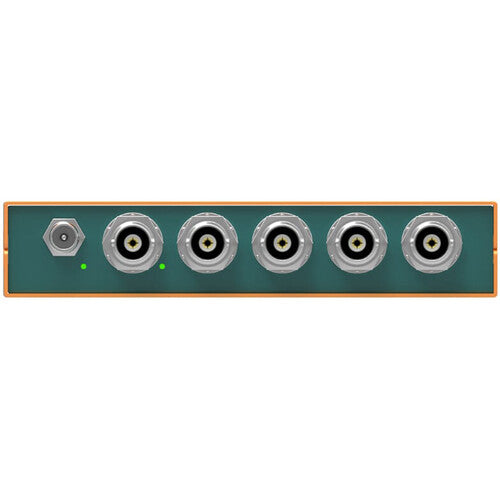

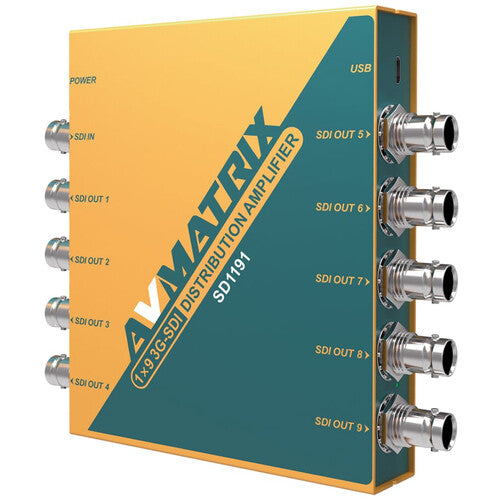

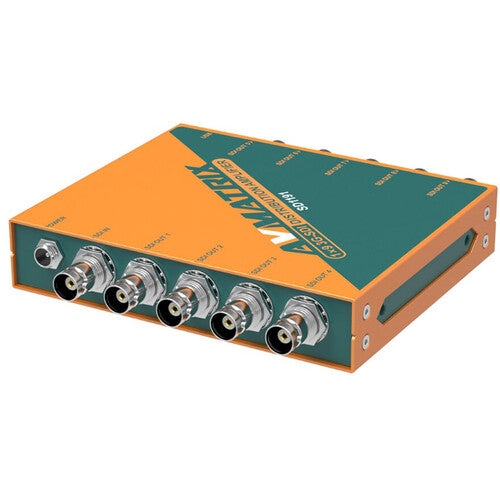

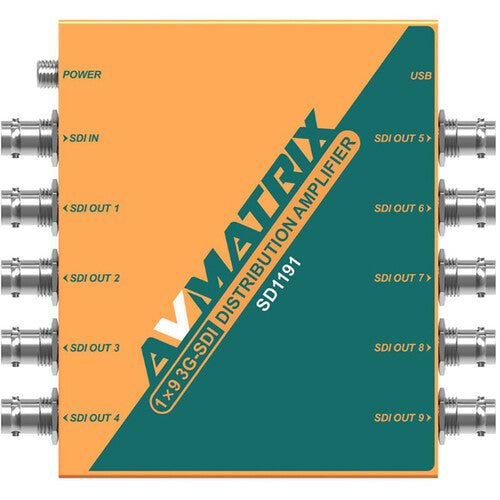

The 1x9 3G-SDI Reclocking Distribution Amplifier from AVMATRIX features a compact, all-metal design that can be mounted on a wall or attached to the bottom of a desktop. It employs reclocking and cable equalization that allow cable lengths up to 394' for 3G-SDI signals, 656' for HD-SDI, and 1312' for SD-SDI. The automatic reclocking and equalization process regenerates the input, reduces jitter, and improves the SDI eye pattern, allowing for the longer cable runs.
The single input auto-detects 3G/HD/SD signals, and you get nine automatically buffered and reclocked outputs in up to 1080p60 resolution. The input and all outputs also offer DVB-ASI compatibility.
3G/HD/SD-SDI input and 9 buffered and reclocked outputs all supporting DVB-ASI signals
RGB 4:4:4 10-bit/12-bit
YUV 4:2:2/4:4:4 10-bit/12-bit
Automatic cable equalization and signal retiming
All ancillary data is passed to the outputs
LED indicators for power and signal lock
Threaded locking power connector
