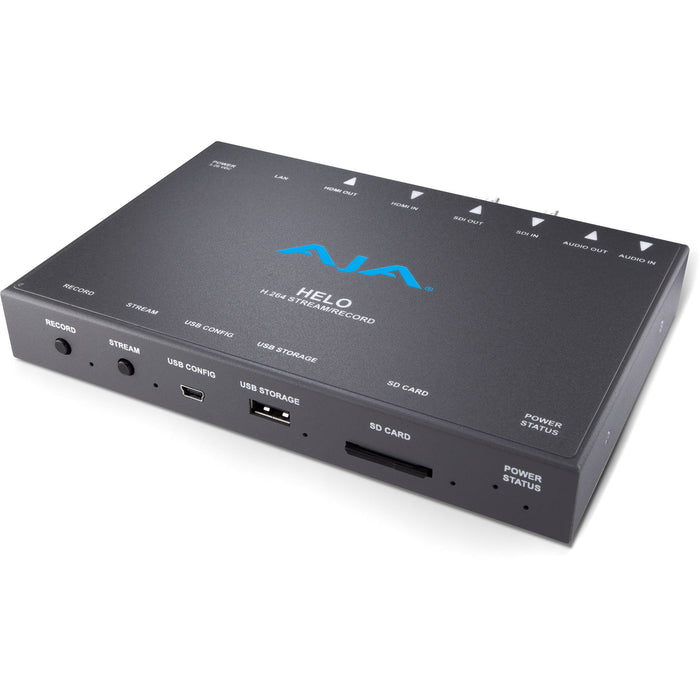

AJA HELO H.264 Streamer & Recorder
by shuttermaster.com.ph
₱72,000.00

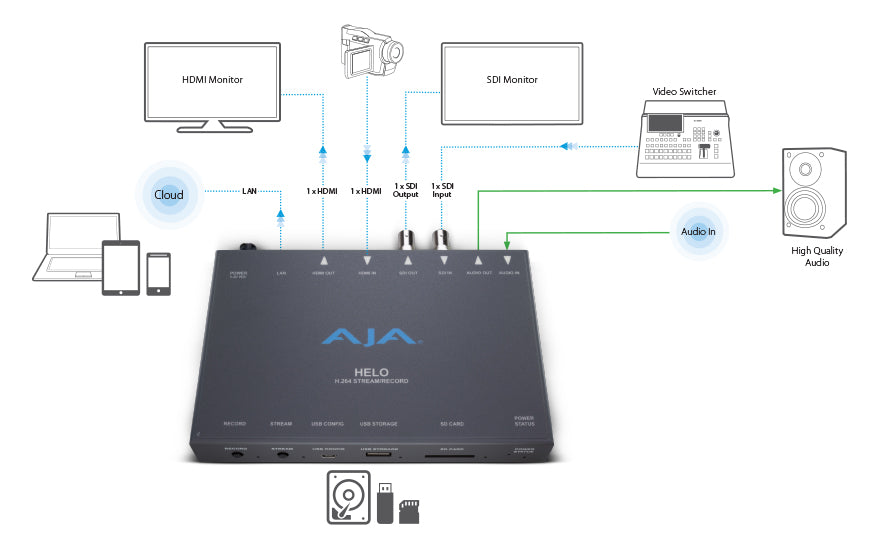

The HELO H.264 Streamer & Recorder from AJA is a stand-alone appliance which brings both SDI and HDMI input/output into a single appliance with the ability to simultaneously stream out to your Content Delivery Network (CDN) as well as encode and record H.264 files to SD cards, USB storage, or network-based storage simultaneously.
- Portable, stand-alone 3G-SDI and HDMI source inputs
- Encode up to 1080p 60 in H.264/MPEG-4
- 2-Channel stereo audio encoded up to 24-bit 48kHz
- Data rates from 32kbps to 256kbps in MPEG-4
- Record to SD, SDHC or SDXC cards, USB storage, NFS, CIFS, or SMB
- USB Slot and SD card slot
- Video input and output 3G-SDI, SMPTE-259/292/296/424, 10-bit, Single Link 4:2:2, 4:4:4, BNC and HDMI
- Support for RTP/RTSP, RTMP, RTMPs, HLS, and Unicast
- AV Mute with user graphics upload support for pre-live feeds
- Error logging for quick analysis of streaming issues
- WebUI Regionalization for Chinese, Japanese and Korean
- Web based GUI preview window
Portable and Ready-to-Use
- With a small and robust form factor, HELO Recorder can be used in live events, webcasts, production and locations
- Designed for continuous use to deliver with full connectivity
- Offers both HD-SDI and HDMI source inputs in a single device with the ability to encode up to 1080p 60 in H.264
- Streams out to your Content Delivery Network (CDN) and records to SD card, USB storage, or network-based storage simultaneously
Encode
- Encodes to H.264/MPEG-4 ensuring bandwidth efficiencies with widely compatible files from tablets to smartphones, desktops to smart TVs
- 2-channel stereo audio can be encoded at up to 24-bit 48 kHz at data rates ranging from 32 KB/s to 256 KB/s in MPEG-4-LC, allowing you to make an appropriate choice for your project's needs
Stream
- USB connection and robust web-browser based UI allows you to setup and configure your CDN connection
- The stream button delivers your project across the recorder’s Ethernet connection, which allows support for RTP/RTSP, RTMP as well as Unicast
Record

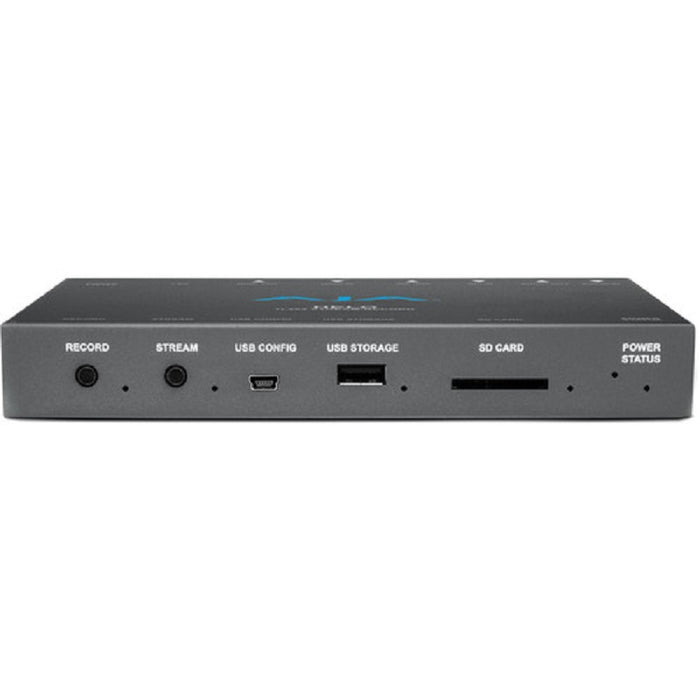

- Offers a dedicated record button right on the front of the recorder’s small and mobile interface for immediate recording
- You can simply plug in your NTFS 3.1 or FAT 32 formatted USB drive, SD card, or connected network storage and start recording immediately
Mass Media
- H.264-based encoding not only ensures efficiently sized files, it also means you have multiple recording medium options
- Utilizes USB thumb sticks, drives and RAIDs, common SD or SDHC media or network sharing across a switch
Built-In Webserver
- AJA eMini-Setup and recorder’s easy-to-use web-browser interface make it simple to setup, configure, and update firmware
- You can connect to the recorder either via its direct USB port to set static/dynamic IP addresses through AJA eMini-Setup software or over the network using the web server generated UI
Multiple Choices
- For Ki Pro or CION Users, the HELO Recorder expands your HD pipeline with up to 1080p60 support
- You can connect via 3G-SDI or HDMI and record H.264 proxy files for fast onsite portable editing on a laptop and stream your live capture or playback as needed
